Configuring Receipt Printer

In ORO POS terminals can add receipt printers to print sales receipts. If multiple receipt printers are added they will print the same copy to all of them.  There are also options to turn off those receipt printers.

We recommend our certified receipt printer models listed on our website

Supported paper sizes

The recommended paper size is 80mm. But stores can choose from one of the following sizes

  • 80mm.
  • 76mm.
  • 58mm.

Printer modes

Our certified printers can print in one of the following modes. ESC/POS modes will print faster but may need some extra settings.

# Standard Mode ESC/POS Mode
Feature Use graphics layout  Use text layout
Speed Regular Fast
HTML support HTML 3 None
Drawer connectivity  Requires drawer trigger  Drawer trigger or RJ12



Configure Receipt printer in Standard Mode

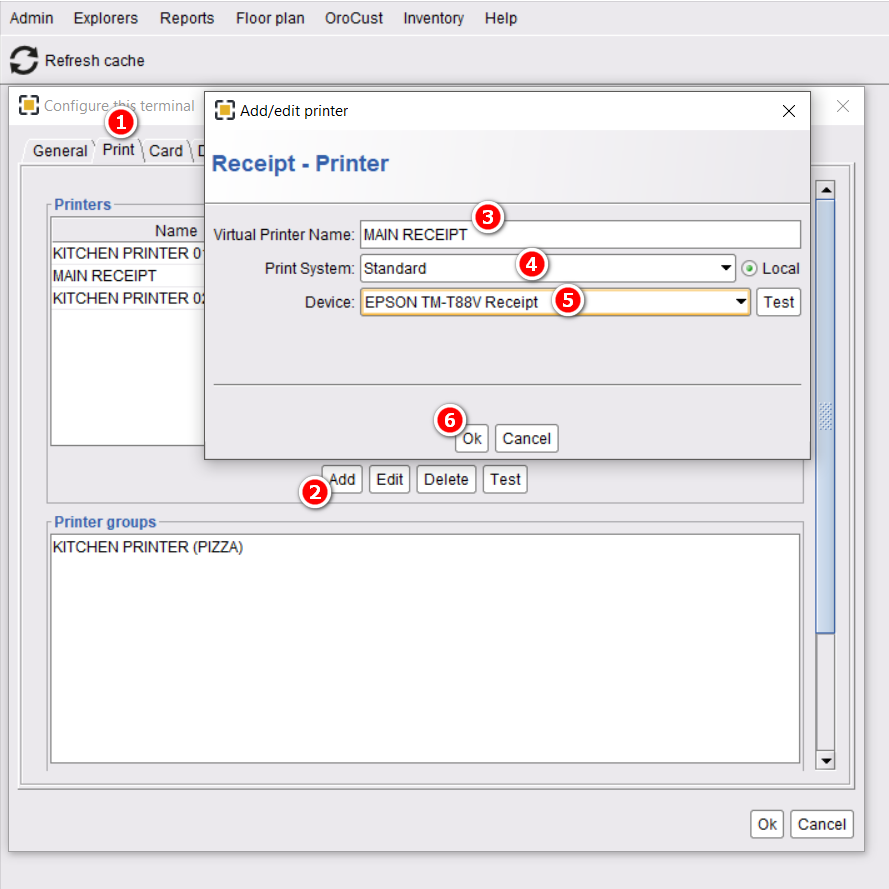

To add a receipt printer please follow the steps below,

Back office–> Admin–> Terminal configuration–> Print–> Add a receipt printer





  1. Click on the Print tab.
  2. Click on Add to select a printer type.
  3. Name your receipt printer.
  4. Select the Standard mode.
  5. Select your device. (Please install the device driver prior to finding the device here)
  6. Press Ok to save it.

After setting up the receipt printer, please restart the system, take orders, and check the printer performance.

Configure Receipt printer in ESC/POS Mode

Configure printer like the previous step but in Printer mode select “EscPOS. You need to find the Printer port in step 4. In Windows this is found in Control Panel -> Device Manager -> Ports

You can adjust text length from 32 to 48 as per paper size.
